U-Pilot & U-Pilot OEM
Our U-Pilot on-board autopilot is designed to give you total control and confidence in the air. Whether for fixed-wing or rotary-wing UAVs, it manages the entire mission from automatic take-off to landing, fully autonomous yet always with the option of manual override when needed.
Descripcion
Its hardware architecture is safe by design: one CPU is solely dedicated to flying the aircraft without any blocking operations, while the second CPU ensures smooth management of payloads and mission tasks. Combined with top-of-the-line MEM sensors (up to ±16G and 2000 °/s dynamics detection), U-Pilot delivers ultra-fast attitude estimation and control loops at 1 kHz, providing rock-solid stability even for the most demanding platforms.
With up to 26 PWM outputs, 8 RS-232 or 4 RS-485 serial ports, and 3 available 12-bit ADC channels, U-Pilot is built to handle all your integration needs. Its on-board 184-channel GPS receiver with RTK support ensures outstanding navigation performance and precision.
Mission planning is equally powerful:
- Support for up to 200 waypoints
- Soaring capability to extend flight time
- Fully automatic mission control
- Automatic return-to-home in case of communication loss, with either direct or backtrack route configurable in real time
The integrated long-range data link (operating at 900 MHz by default) enables communication distances of 100+ km, with support for dual radio-link redundancy for maximum safety.

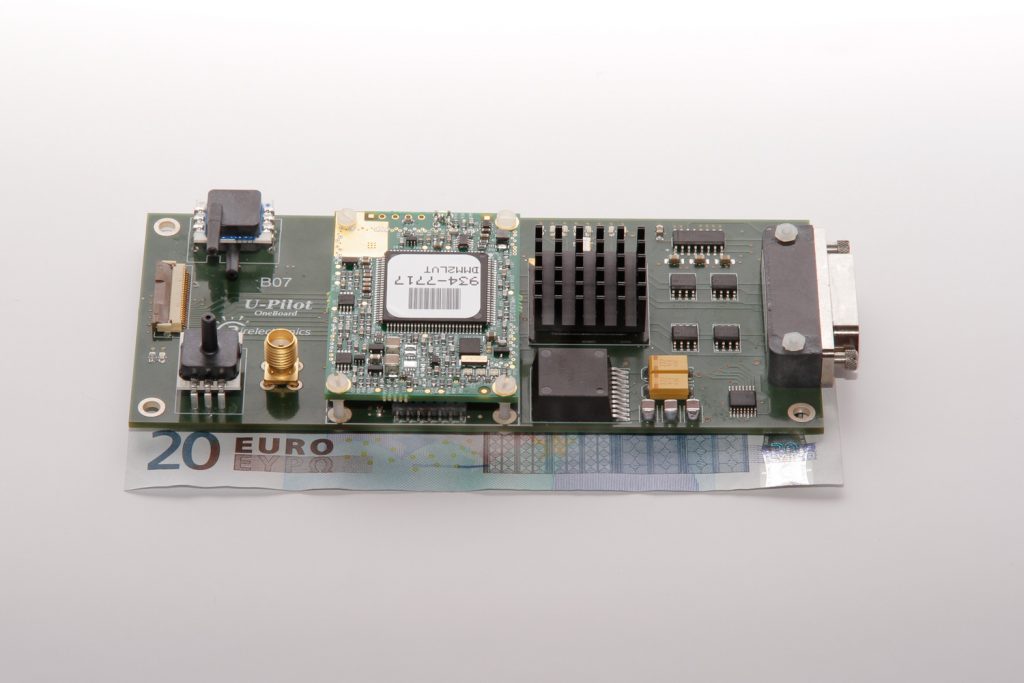

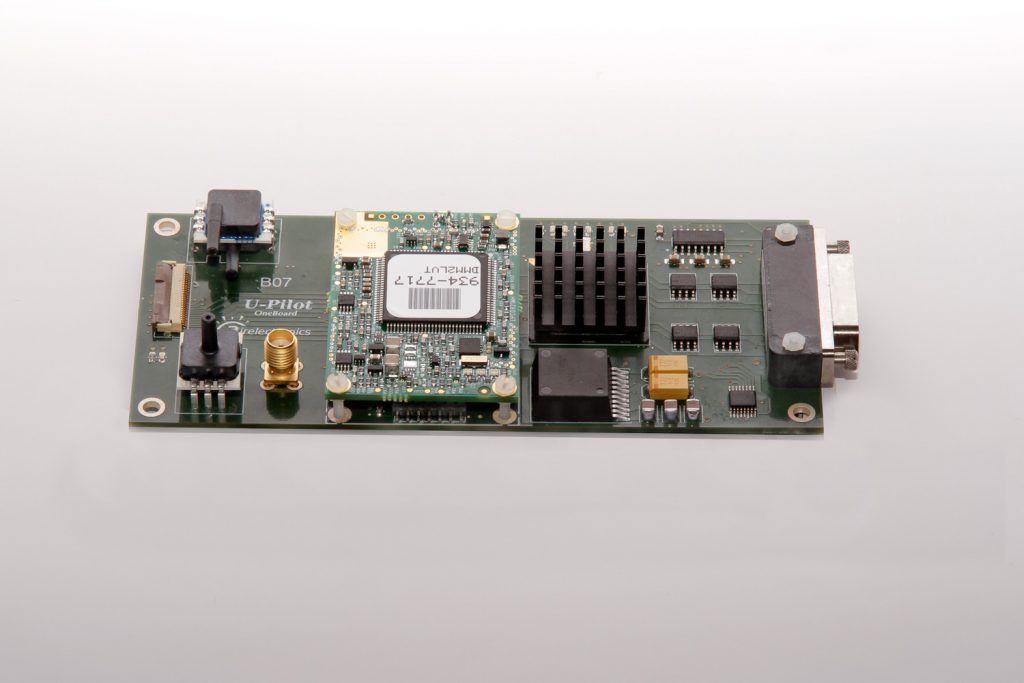

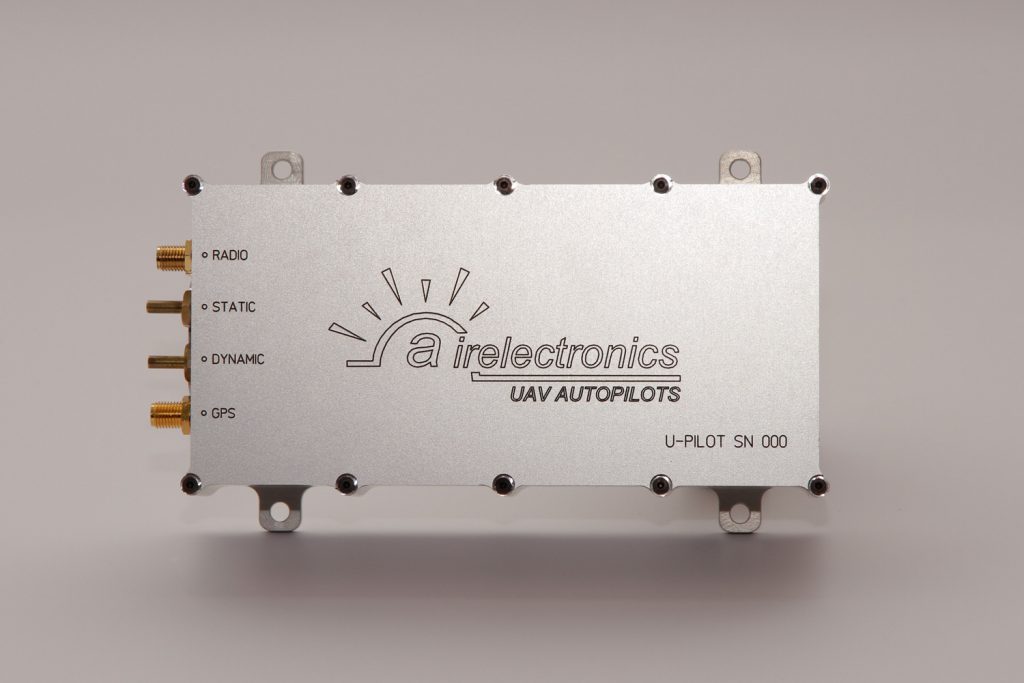

U-Pilot is available in two versions: a rugged aluminum case for maximum protection, and a lightweight OEM version designed to save weight when every gram counts.
Note: Depending on local frequency regulations, the data link may operate at 900 MHz, 1.4 GHz, or 2.4 GHz. Contact us for guidance in your region.
Images





Files
Prices
290_4f9682-41> |
Boxed Version 290_15461f-ef> |
OEM version 290_a14c34-5f> |
---|---|---|
U-Pilot Fixed Wing – Standard 290_5f112d-3b> |
4.965€ 290_b5efc5-6d> |
4.665€ 290_c7b13b-0b> |
U-Pilot Fixed Wing – Triple Sensor 290_0f5c9e-87> |
7.165€ 290_185ce3-a9> |
6.865€ 290_353608-cb> |
U-Pilot Fixed Wing – Triple Sensor – External Radiolink 290_05e68b-39> |
8.865€ 290_5c5f8e-59> |
8.125€ 290_acb339-47> |
U-Pilot Rotary Wing – Standard 290_fec237-74> |
8.265€ 290_0dafba-5e> |
7.965€ 290_f01304-90> |
U-Pilot Rotary Wing – Triple Sensor 290_002d56-c3> |
8.275€ 290_87fed5-67> |
7.975€ 290_718bd6-0c> |
U-Pilot Rotary Wing – Triple Sensor – External Radiolink 290_48af19-37> |
9.965 290_ac296c-a2> |
9.925€ 290_f59ac2-a8> |
